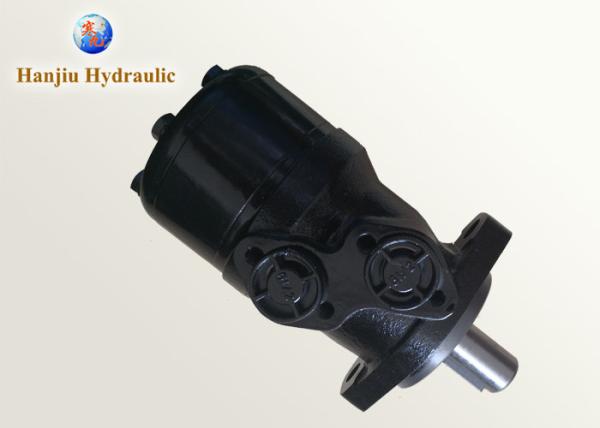

Shaft 25MM Cylindrical Orbit Hydraulic Motor BMR250 / OMR250 151-1236

Shaft 25MM Cylindrical Orbit Hydraulic Motor BMR250 / OMR250 151-1236

Brand Name : HANJIU
Model Number : BMR250
Certification : CE
Place of Origin : China
MOQ : 50 Pieces
Price : 40USD/PC
Payment Terms : L/C, T/T, D/A, D/P, Western Union
Supply Ability : 80000 Pieces One Year
Packaging Details : Carton Box
Product Name : Hydraulic Motor BMR
Displacement : 250cc
Application : Engineering and agricultural machinery
Power : Hydraulic Oil
Features : Match Danfoss OMR Motor
Contact Now

Hydraulic Motor BMR250 / OMR250 151-1236 , Shaft 25MM Cylindrical


Hanjiu Hydraulic Motor BMR250 match than Danfoss OMR250 151-1236 :


• Shaft : 25mm


• Oil Port : G1/2"


• Drain port : G1/4"


• Flange : 2 flange


• Key : 8x7x32mm


Features


• Hydraulic Augers Hydraulic orbit Motor is one type of high torque low speed hydraulic motors, with high efficiency and long life.


• Orbit Motors has a wide speed range, high starting torque and rotating stable at high speed compact and light.


• It can be connected to working machine directly, adapted to all kinds of low speed heavy load facilities.


• Compact design of spool and gear set , which provide mini volume, high power and low weight.


• Credible design for shaft seal , which can bear high pressure.


• Direction of shaft rotation and speed can be controlled easily and smoothly.


Application


1. Construction equipment


2. Agricultural equipment


3. Forestry equipment


4. Road Sweepers


Specification


TypeBMR
BMRS
36
BMR
BMRS
50
BMR
BMRS
80
BMR
BMRS
100
BMR
BMRS
125
BMR
BMRS
160
BMR
BMRS
200
BMR
BMRS
250
BMR
BMRS
315
BMR
BMRS
375
Geometric displacement (cm3 /rev.)3651.781.5102127.2157.2194.5253.3317.5381.4
Max. speed (rpm)cont.1085960750600475378310240190155
int.12201150940750600475385300240190
Max. torque (N·m)cont.72100195240300360360390390365
int.83126220280340430440490535495
peak105165270320370460560640650680
Max. output (kW)cont.8.59.512.51312.512.510765
int.9.811.2151514.514139.598
Max. pressure drop (MPa)cont.141417.517.517.516.5131197
int.16.517.52020202017.5151310
peak22.522.522.522.522.522.522.52017.515
Max. flow (L/min)cont.40506060606060606060
int.45607575757575757575
Weight (kg)6.56.76.977.37.688.599.5
